TH-VG series intelligent Eco-friendly dyeing machine is designed for large-scale production.
★ Liquor ratio 1:4-6
★ Very suitable for elastic cloth and low-tension fabrics running requirements.
★ Large loading capacity, low liquor ratio, and easy operation.
★ Maintain the advantages of the downward running dyeing machine, with features of water saving, time saving, and energy saving function, and low operating cost.
★ Fully automatic jet flow is suitable for micro fiber, high twist, woven fabric, curly edge, etc.
★ Flexible water flow to minimize surface impact on high-grade fabric, ensuring no fluffing and no distortion on yarn.
★ Unique elbow design to realize no dead ends in water jet, cloth tension is minimal.
★ Tank body manufacturer by highly resistant to corrosion stainless steel AISI 316L.
★ According to the highest industrial standard (ASME or JIS) for manufacturing high-strength and highly resistant machine tanks and heat-exchangers.
★ Machine body fully sandblasted.
Main Technical Parameters
| Model | TH-VG Series |
| Machine Type | Long cylinder block |
| Max. Working Temperature | 135℃ |
| Design Pressure | 0.4Mpa |
| Temperature Rising Rate | Around 35 minutes from 20℃ to 130℃ (saturation vapor pressure is 0.7Mpa) |
| Max. Working Pressure | 0.4Mpa |
| Cooling Rate | Around 25 minutes from 130℃ to 80℃ ;Cooling water temperature: 20℃~30℃ |
| Design Temperature | 140℃ |
| Bath Ratio | As low as 1:4~6 |

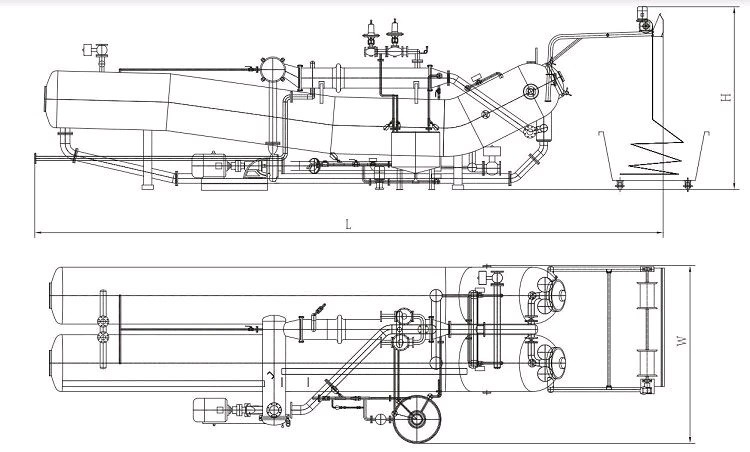

Main Technical Specifications
| Model |
TH-VG-1D
|
TH-VG-2D
|
TH-VG-4D
|
| Number of Tubes / Chembers | 1/2 | 2/4 | 4/8 |
| Max. Capacity (KG) | 700-1000 | 1400-2000 | 2800-4000 |
| Dimension (LxWxH mM) | 12400x2385x3100 | 12400x3700x3100 | 12400x6500x3300 |
