Jet Dyeing Machine

HTHP Fabric Dyeing Machine

HTHP Fabric Dyeing Machine

Place of Origin: WUXI, JIANGSU, CHINA
Brand Name: TONGHUA
Model Number: TH-LA Series
Minimum Order Quantity: 1 Set
Price: Negotiation
Delivery Time: 35 Work Days
Payment Terms: T/T
Port: Shanghai Product
...

HTHP Fabric Dyeing Machine

Place of Origin: WUXI, JIANGSU, CHINA

Brand Name: TONGHUA

Model Number: TH-LA Series

Minimum Order Quantity: 1 Set

Price: Negotiation

Delivery Time: 35 Work Days

Payment Terms: T/T

Port: Shanghai


Product Description

TONGHUA TH-LA series HTHP fabric dyeing machine is a full-length model of knitted fabric with short flow and built-in cloth. The dyeing machine achieves high-quality dyeing effect, and the operation is convenient and reasonable, and is highly praised by the printing and dyeing industry.

Machine load amount: 50kg, 1OOkg, 250kg, 500kg, 1000kg, etc.

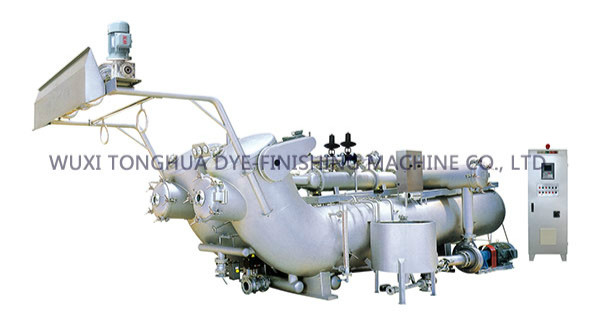

HTHP Fabric Dyeing Machine.jpg

Main Technical Features

1. The dyeing process is short, the cloth length is moderate, and the bath ratio is low.

2. Built-in composite reducer guide tube: minimizes tension and effectively removes the warp crease.

3. The nozzles for overflow and jet flow are available: suitable for dyeing all kinds of high-grade fabrics with a weight of 50-600g/m2.

4. The dyeing machine has low height, low tension, small shrinkage after dyeing, and the finished product weight is easy to achieve.


The System Provides


1. Automatic Feeding: ANALOG DOSING analog curve dosing; Staging batch, regular dosing; large and small valves (fast, slow) dosing

2. Automatic water level detection and control system for medicine barrel

3. Circulating pump with strong mixing, can quickly salt

4. Automatic washing and automatic washing of pipes


Cast stainless steel full flow valve to save on and drain time.


Large-capacity programmable microcomputer controller (or configured by customer-specified brand)

High degree of automation, from water inlet, start-up, heating, heat preservation, cooling, water washing, dosing, mixing, returning water, washing barrels, drainage, alarm, program completion, etc. can be programmed into the dyeing process for automatic control.


Product Specifications

Specification

Capacity(kg)

Number of tubes/ chembers

Power capactiy (KW)

Outer Dimension(length × width × height)

TH-LA 50

35-50

1/1

11.6

6000×1350×2350

TH-LA 100

70-100

1/1

11.6

7500×1350×2350

TH-LA 250

175-250

1/2

20.2

8000×1850×2700

TH-LA 500

350-500

2/4

37.4

8000×3400×2700

TH-LA 1000

700-1000

4/8

68.3

8000×6000×2700
