Jet Dyeing Machine

HTHP Long Tube Rapid Fabric Dyeing Machine

HTHP Long Tube Rapid Fabric Dyeing Machine

General Description And Main Features
* Fabric loading capacity: 35 -1000Kg.
* Pressure vessel and all wet part of machine made of stainless steel AISI 316/316 L, highly corrosive resistance.
* The fully folded nozzle and nozzle diameter up to 83 to 110 mm. for manmade fabric.
* Newly developed high flow nozzle for light or heavy fabric.
* High fabric speed up to 150-600 m /min.
* Lifter reel driven by frequency inverter control motor, for fabric speed up to 500/600 meters, subject quality of material.
* Liquor ratio: 1 : 6 to 1 : 8.
...

General Description And Main Features

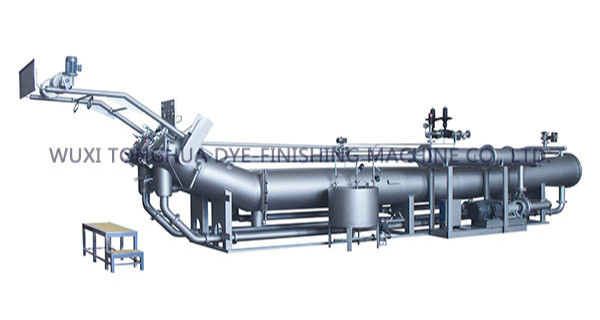

HTHP Long Tube Rapid Fabric Dyeing Machine.jpg

* Fabric loading capacity: 35 -1000Kg.

* Pressure vessel and all wet part of machine made of stainless steel AISI 316/316 L, highly corrosive resistance.

* The fully folded nozzle and nozzle diameter up to 83 to 110 mm. for manmade fabric.

* Newly developed high flow nozzle for light or heavy fabric.

* High fabric speed up to 150-600 m /min.

* Lifter reel driven by frequency inverter control motor, for fabric speed up to 500/600 meters, subject quality of material.

* Liquor ratio: 1 : 6 to 1 : 8.

* Dye - 30 to 450 grams / Mtr. Sq. Fabric (polyester, polyester blend, woven & knitted fabric).

* Specially designed the heat exchanger for quick heating and cooling.

* Maximum working temperature 140°C.

* All safety device required for a pressure vessel are incorporated with machine.

* Take off reel with direct couple geared motor and stainless steel structure.

* Heavy duty low rpm pump which consume low power & high discharge of liquor.

* Magnetic water level indicator with duly calibrated in terms of liter.

* All valves are made of investment casting and stainless steel 316.

* Semi and fully automatic version with advanced microprocessor control.

* Out finish shot blasted.

Note: Especially those material sensitive to create mark such as polyester and micro fibre etc.


Specification of HTHP Long Tube Rapid Fabric Dyeing Machine

Model

Fabric-Holding Capacity (KG)

Tube Quantity/ Slot Quantity

Installed Power (KW)

Dimension (Length X Width X Height)

TH-VT 50

35-50

1/1

15.5

6600x1450x2450

TH-VT 100

70-100

1/1

19.5

7600x1450x2450

TH-VT - 1

175-250

1/1

23

11400x1600x2750

TH-VT - 2

350-500

2/2

43

11400x2500x2750

TH-VT - 4

700-1000

4/4

85.5

11400x4900x2750
